Description

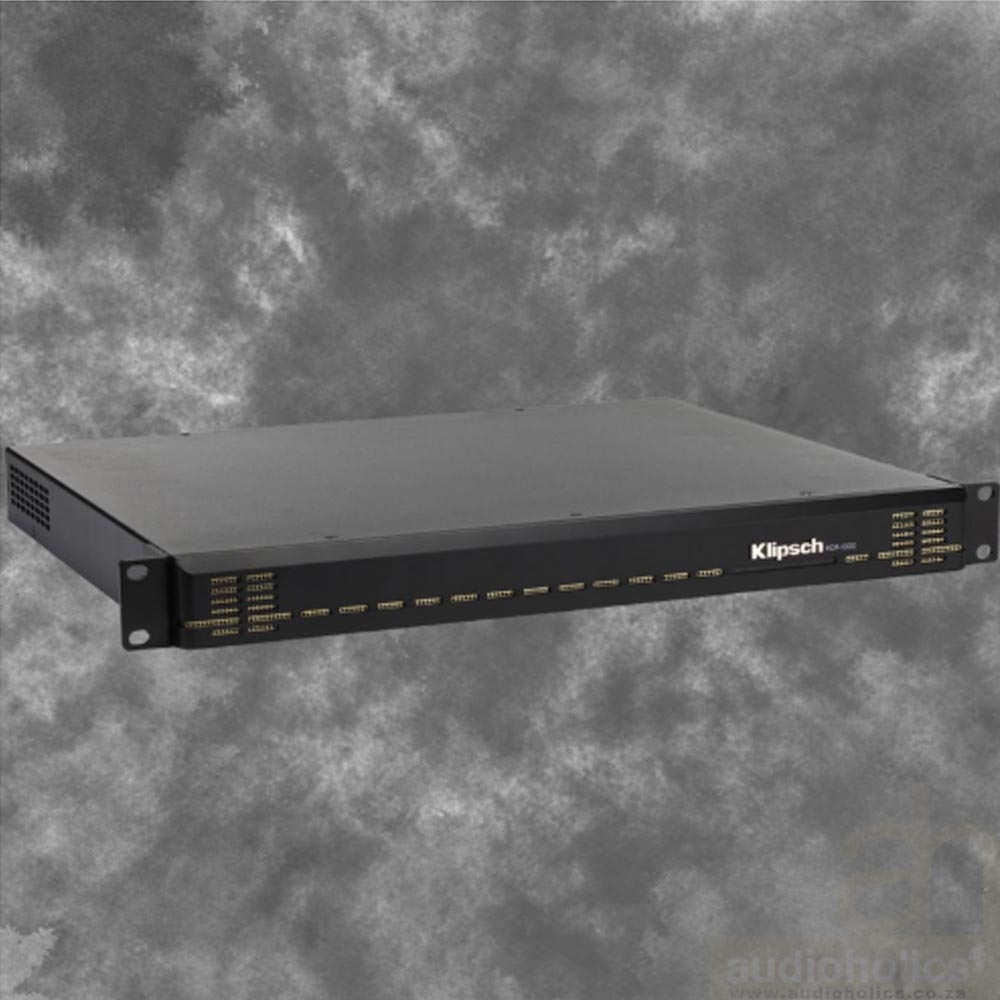

For outdoor systems requiring more output, the Klipsch KDA-1000 DSP Amplifier powers larger arrangements to deliver incredible performance from a 1000W, single-rack unit solution – all completely customizable through the web-based DSP menu.
Features:
- 1000W Total System Power (4 x 250W)
- High performance power platform
- 70V / 100V / Low Impedance Compatibility
- Flexible I/O
- State-of-the-art DSP control and set-up
HIGH PERFORMANCE POWER PLATFORM
The Klipsch KDA Series DSP Amplifiers offer legendary Klipsch power and performance in a sleek, high-tech, 1 rack unit solution. The KDA-1000 offers 1000W of class G/H power, for clean, dynamic power in any type of install.
70V / 100V / LOW IMPEDANCE COMPATIBILITY
From small residential systems to massive commercial installs, the Klipsch KDA-1000 is designed for maximum install flexibility
– offering low impedance and 70V/100V compatibility for distributed line applications. These impedance settings are fully independant from channel to channel – so an installer can run one channel low impedance with another channel 70V/100V for full customization and optimization of their system.
FLEXIBLE I/O
The KDA-1000 boasts fully matrixed 4×4 I/O with fully balanced Phoenix connector inputs and Phoenix speaker outputs capable of connecting up to 12 gauge wire. For non-balanced connections, RCA inputs and outputs (throughs) are also built-in, making the KDA-500 one of the most flexible power solutions on the market today.
STATE-OF-THE-ART DSP CONTROL AND SET-UP
The myriad of I/O, impedance, and acoustic settings are fully matrixed and customizable through the web-based DSP menu – simply plug in a laptop computer to the RJ-45 port on the back panel of the amplifier, enter the assigned IP address into your favorite web browser to pull up the easy-to-use, streamlined menu page. In addition to password protected channel assignments, gain settings, EQ, and limiting, the DSP provides presets for almost every Klipsch speaker on the market – optimizing acoustic performance and power handling for these products with a single click. Accessing the DSP wirelessly with a tablet, smartphone, or computer is also quick and easy when
the KDA amplifier is plugged into the network’s wireless router.
SPECIFICATIONS
Part Number
120V: 1063258 230V: 1063261
Amplifier Type
High Efficiency Class G/H
Amplifier Power
1000W Total System Power 4 x 250W Per Channel
Inputs
Balanced: 4 x Phoenix Line Level (up to 12 AWG wire) Unbalanced: 4 x RCA Line Level
Outputs
4 x Phoenix Speaker Level (up to 12 AWG wire) 4 x RCA Line Level (Throughs)
Input Sensitivity
750mV Balanced, 0dBU
Input Impedance
Balanced 40k
THD
<1% @ Rated Output
Signal-To-Noise
-100dB Below Rated Output
Enclosure Type
Front Face: ABS Plastic Case: Machine Formed Steel
Rack Unit
1RU
Product Dimensions
1.73” x 19.02” x 14.29” (44mm x 483mm x 363mm)
Product Weight
15 lbs (6.82 kg)
Mount Type
Removable 1RU Rack Ears, Removable Rubber Feet
