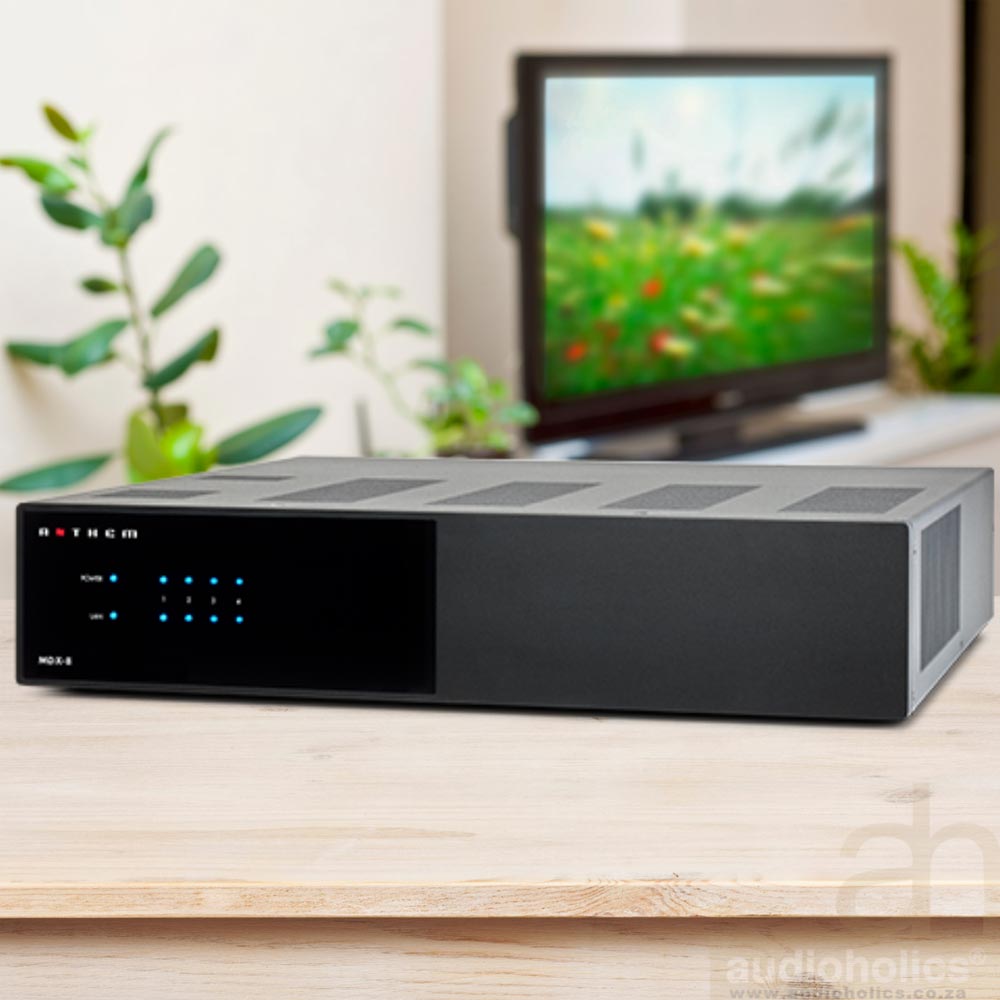

ANTHEM MDX-8 MDX SERIES 8 CHANNEL/4 ZONE AMPLIFIER 8x65w
New MDX Series is Anthem’s first line of multizone amplifiers. Featuring ARC Genesis room correction for each zone
The new MDX Series will be offered in 8- and 16-channel configurations (MDX-8, MDX-16) with – get this – the company’s ARC Genesis room-correction technology for every single zone (four and eight zones, respectively).
“Nobody has room correction for every zone,” says Paradigm/Anthem sales manager Chris Sipes. “They might have DSPs for every zone, but that’s not the same thing.”
Dedicated Subwoofers for each Zone
Specifications
Channels / Zones
8 channels / Up to 4 zones
Power Output RMS per Channel (8 Ohm)
60 Watts
Power Output RMS per Channel (4 Ohm)
120 Watts
High Output Mode (Bridged) RMS per Channel (8 Ohm)
200 Watts
Frequency Response
10Hz – 20kHz ±0.5dB
Digital-to-Analog Converter
PCM up to 24 bit/192 kHz
Inputs (analog)
4x RCA pairs (left/right)
Inputs (digital S/PDIF)
1x Optical
Inputs (network)
RJ-45 10Base-T/100
Base-TX ethernet port (female)
Inputs (trigger)
1x 3.5mm (5 – 24V DC/AC)
Inputs (other)
Micro-USB (for ARC); RS-232
Outputs (speaker level)
4x removable Phoenix style (left/right) accommodate wire up to 12AWG
Outputs (subwoofer)
4x RCA (with bass management and room correction)
Outputs (other)
1x 3.5mm 12V trigger
