Description

Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
AL-MAC™ is a unique blend of Aluminum, Magnesium, and Ceramic materials; each of which contribute to the end goal of greater accuracy and realism. Their special properties contribute to the final product which is not only strong and lightweight, but embodies a natural anti-resonance to ensure the tweeter doesn’t just sound good “on paper” but truly sounds incredible in the real world.

Aluminum Magnesium (AL-MAG™) Cones
AL-MAG™ was conceived to bring the same elevated level of performance to the area where our ears are the most sensitive. In addition, AL-MAG™ combines a high stiffness-to-mass ratio with superior internal damping for greater accuracy.

Advanced Shock-Mount™ System
mechanically decouples the die-cast aluminum baskets from the specially formulate CARBON-X™ ingrained baffles reducing performance-robbing vibrations and resonance between the chassis and the acoustic platform. Without these resonances, all drivers are left free to deliver pure, unaltered sound with no audible distortion.

Oversized, 1.5” High-Power Handling Voice Coil
motor structure dramatically increases maximum output level and reduces power compression.
Patented† Active Ridge Technology (ART™) surrounds
made in-house and over-moulded directly onto each cone, achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds. † US patents: D654,479S and 8,340,340B2.

Specifications

DESIGN

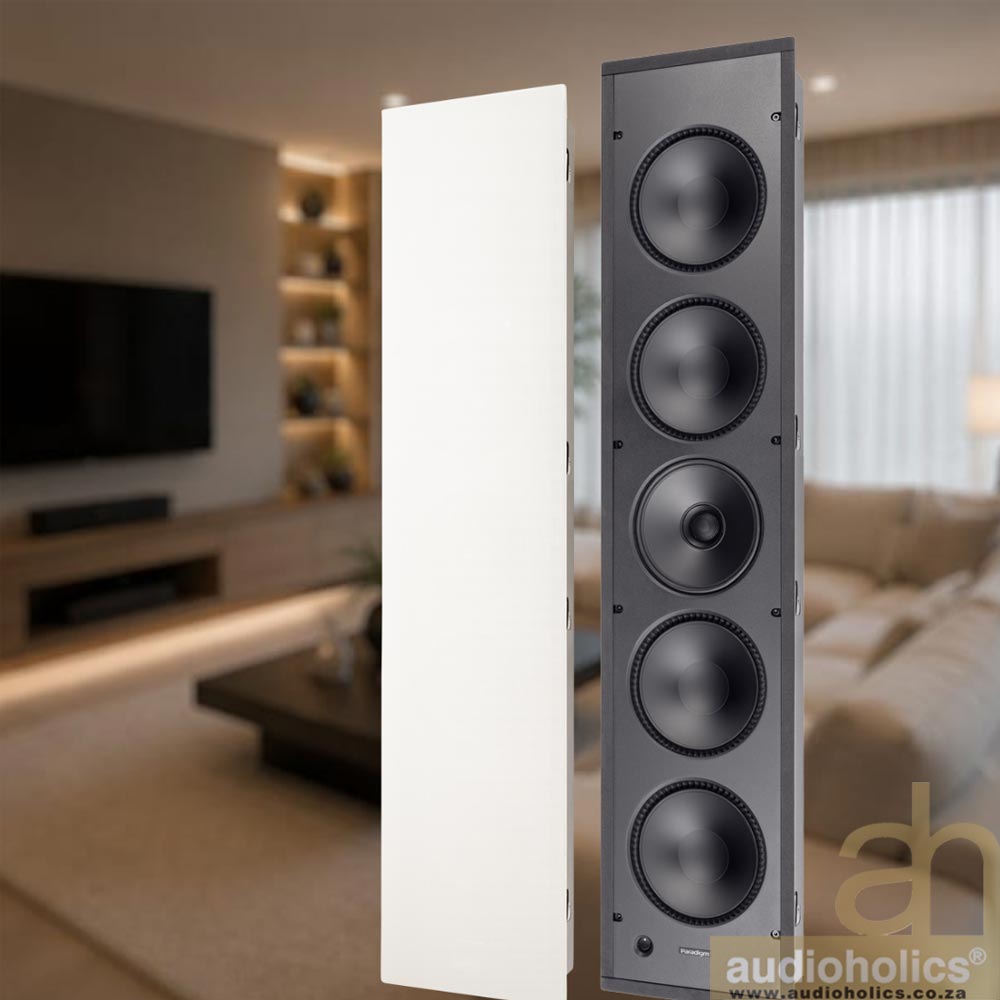

4-driver, dual passive radiators, 3-way, shallow enclosure in-wall design, Advanced SHOCK-MOUNT™ System, Machined Aluminum Baffle

CROSSOVER
3rd-order electro-acoustic at 3 kHz 2nd-order electro-acoustic @ 480 Hz

FREQUENCY RESPONSE ON-AXIS
±3 dB from 80 Hz – 22 kHz

HIGH FREQUENCY DRIVER
Coaxial 1” (2.5cm) Aluminum Magnesium Ceramic AL-MAC™ Ceramic Dome with Oblate Spheroid Waveguide (OSW™) and Perforated Phase-Aligning (PPA™) Tweeter Lens, Patented Dual-Sync™ Continuous Flux Motor

BASS FREQUENCY DRIVER
Two 8” (20.3cm) Aluminum Magnesium (AL-MAG™) Cones with overmolded Active Ridge Technology (ART™) surround, Advanced Shock-Mount™ System, 1.5” high-temp voicecoil, FEA-Optimized Ultra Rigid Cast-Aluminium Baskets

MIDRANGE FREQUENCY DRIVER
Coaxial 6” (15.2cm) AL-MAG™ Cone with SHOCK-MOUNT™ Isolation Mounting System, a 2” high-temp multi-layered voice coil with Apical™ former, Patented Dual-Sync™ Continuous Flux Motor

LOW FREQUENCY EXTENSION
55 Hz

SENSITIVITY ROOM / ANECHOIC
95 dB / 92 dB

FREQUENCY RESPONSE 30° OFF-AXIS
±3 dB from 80 Hz – 19 kHz

SUITABLE AMPLIFIER POWER RANGE
15-220 W

MAXIMUM INPUT POWER
150 W

IMPEDANCE
Compatible with 8 ohms

WEIGHT
14.9 kg

FINISHES
White, paintable grille, black speaker

PASSIVE RADIATORS
Two 8” (20.3cm) Aluminum Magnesium (AL-MAG™) Cones with overmolded Active Ridge Technology (ART™) surround, Advanced Shock-Mount™ System, FEA-Optimized Ultra Rigid Cast-Aluminium Baskets

CUT-OUT DIMENSIONS
106.6cm x 21.5cm

MINIMUM MOUNTING DEPTH
(DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2″ DRYWALL, OR SIMILAR MATERIAL.)
9.8cm

DIMENSIONS HXWXD (INCLUDES GRILLE).
109.2cm x 19.5cm x 10.5cm
