Description

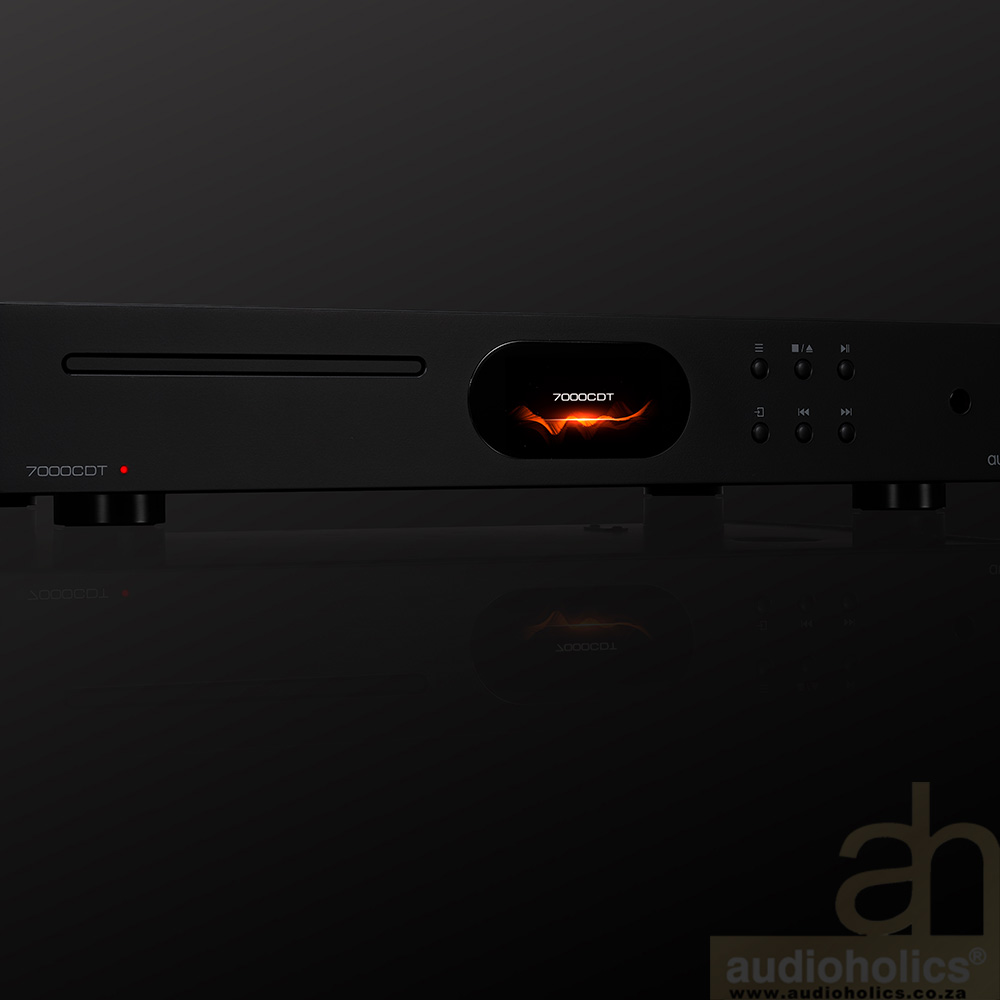

The Audiolab 7000CDT uses a high-precision optical system with an electronic data buffer for accurate and seamless CD playback. Very similar technology to the 9000CDT, the 7000CDT uses a read-ahead digital buffer to reduce disc-reading failures, helping it plays scratched and damaged CDs that may be unreadable by conventional mechanisms. To ensure a flawless signal reaches the accompanying DAC, the coaxial output of the 7000CDT is fed from a differential line driver. The master clock is controlled by a high-accuracy crystal oscillator, enabling the digital output from both coaxial and optical sockets to exhibit vanishingly low levels of jitter (digital distortion).

Isolation From Vibration
The low-friction loading tray, sturdy aluminium base and chassis of the 7000CDT work to tackle vibrations that are experienced due to the mechanics of a high-spin-velocity motor. Further, the transport is mounted in its own, electromagnetically shielded enclosure with a dedicated power supply. All of these contribute to the exemplary digital signal extraction, while the proven resonance reduction further improves performance and onward effect in ancillary Hi-Fi equipment and signal chains.

Digital Files In Any Format
In addition to the class-leading CD playback design, the 7000CDT also offers digital music files compatibly via a dedicated USB ‘Type A’ connection, to the rear of the unit. Every significant hi-res and lossless audio format is catered for, including WAV, AAC and WMA, as well as compressed legacy MP3 formats.

Specifications

Design Philosophy and Core Technology
-Compatible with CD/CD-R/CD-RW
-Support playing USB storage devices (MP3/WMA/AAC/WAV)
-Display indication
-Adjustable screen brightness
-Activate the device automatically via 12V trigger
-Auto standby function can be turned on or off

USB Storage Device Audio Format
Support MP3, WMA, AAC, WAV format playback

USB Storage Device File System
Support FAT12, FAT16 and FAT32 format

Digital Output Amplitude
500 +/-50mVpp

Output Impedance
75Ω

Frequency Response
-0.01dB (20Hz-20kHz, ref.1kHz)

Total Harmonic Distortion (THD)
< 0.002%

Sampling Rate
44.1kHz

Digital Output Interface
1 x Coaxial, 1 x Optical

Standby Power Consumption
< 0.5W

Power Requirements (according to region)
220-240V – 50/60Hz
100-120V – 50/60Hz

Product Size (mm) (W x D x H)
444 x 322 x 78

Carton Size (mm) (W x D x H)
514 x 470 x 158

Net Weight
5.5kg

Gross Weight
7.4kg
