Description

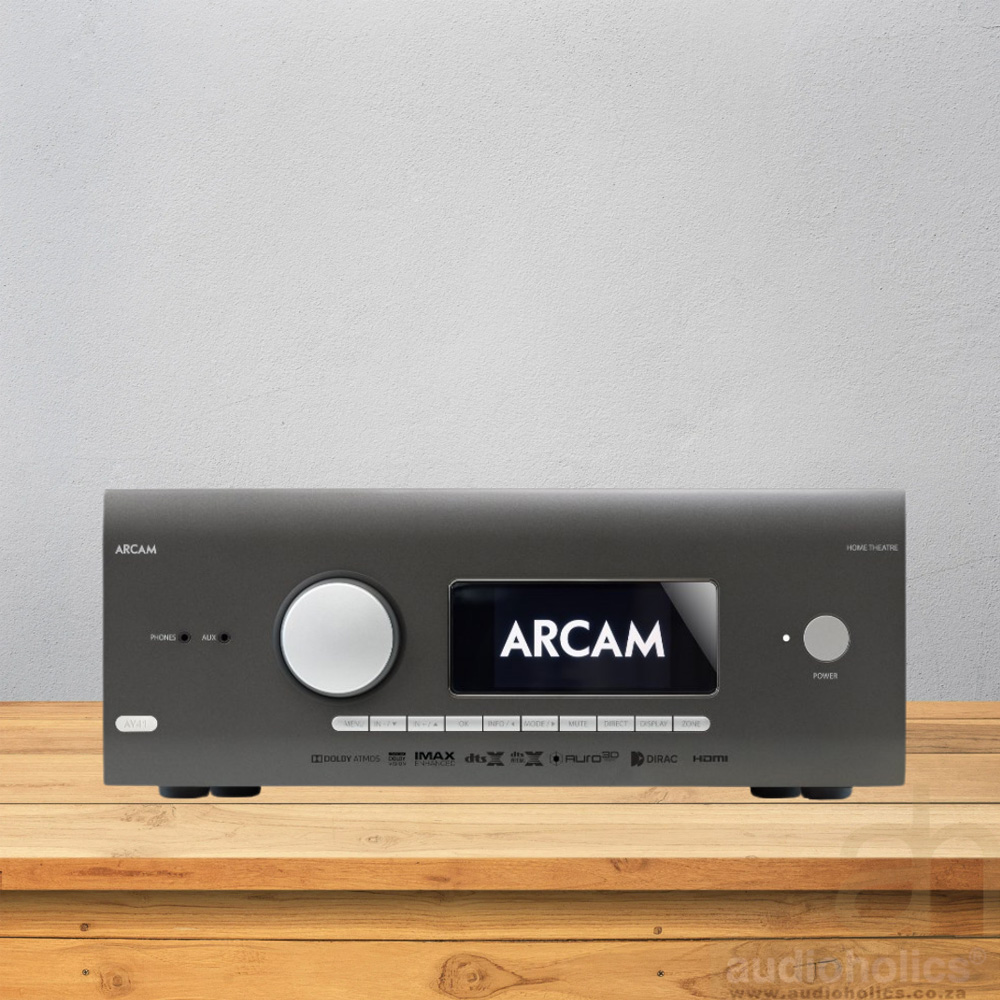

The Arcam AV41 is a high-performance, audio/visual processor that delivers stunning realism for the ultimate home cinema experience. With native 16-channel decoding of immersive audio from Dolby Atmos, DTS:X and Auro-3D, the AV41 can deliver incredible theatre experiences in partnership with Arcam power amplifers.

The Arcam AV41 is designed with a passion for music and movies, bringing both to life with high fidelity and dynamics. The AV41 boasts XLR balanced outputs for all 16 channels to deliver the highest quality analogue connection to power amplifiers.

The performance and musicality can be assured with Dirac Live® room optimisation included, and accessed instantly with integrated streaming using Apple®Airplay2, Google Chromecast®, Bluetooth with aptX®HD, Spotify Connect, Tidal Connect and UPnP with the MusicLife app.

Features:

  • 16 Channels of Dolby Atmos, DTS:X & AURO-3D decoding
  • 7 HDMI inputs, 3 HDMI outputs inc Zone 2, eARC compatible
  • HDMI 2.1 with HDCP2.3
  • All inputs support 8K@60fps and 4K@120fps
  • Supports Dolby Vision, HDR10+, HDR10 and HLG
  • Includes Dirac Live® room correction
  • Ready for Dirac Live Bass Control*
  • Dual ESS 9026PRO audiophile DACs with ESS reference voltage regulators
  • 16 transformerless balanced XLR output channels
  • Pairs with PA720, PA240 & PA410 power amplifiers
  • Wi-Fi / Ethernet, RS232 and IR control
  • Google Chromecast® built-in for streaming audio
  • Apple® Airplay2
  • Bluetooth aptX®HD
  • Free MusicLife iOS and Android UPnP app
  • Roon Ready and supports MQA

Specifications

Stereo Line Inputs
-Maximum input 4.5V rms
-Nominal sensitivity 1V, 2V, 4V (user adjustable)
-Input impedance 47kΩ
-Signal/noise ratio (A-wtd ref 100W) normal/stereo direct 100dB/110dB
-Frequency response 20Hz—20kHz ± 0.2dB

Preamplifier Outputs
-Balanced (XLR) nominal output level per channel 2V RMS (max. 10V RMS)
-Single-ended (RCA) nominal output level per channel 1V RMS (max. 5V RMS)
-Output impedance 560Ω
-THD+N (20Hz—20kHz) –100dB

Headphone Output
-Maximum output level into 32Ω 5Vrms
-Output impedance <100Ω

General
-Mains voltage 110–120V or 220–240V, 50–60Hz
-Power consumption (maximum) 50W (Thermal dissipation approx. 170 BTU/hour)
-Power consumption (idle, typical) 40W (Thermal dissipation approx. 170 BTU/hour)
-Power consumption (standby) <0.5W

Weight and Dimensions
Dimensions W x D (including speaker terminals) x H (including feet) 433 x 425 x 171mm
Weight (net) 10.6kg
Weight (packed) 13.9kg
